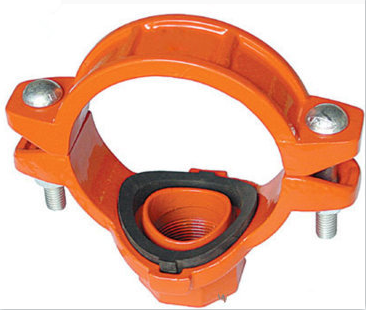

What is Grooved Fitting Mechanical Tee ?
Applications: Fire protection, Water supply system, General pipe system, Air-conditioning, Sewage system, Cement pipe system, Mine pipe systems
Product description :
1. Grooved Fittings series : Coupling, Elbow, Tee, Cross, Cap, —
2. Material : Ductile iron
3.size
| Mechanical Tee(grovved) | |||||||
| Nominal Size mm/in | Pipe O.D mm/in | Working Pressure PSI/MPa | Dimensions mm/in | Hole cuting dimensions | |||
| Nominal Size mm/in | Ø | Pipe O.D mm/in | A | Working Pressure PSI/MPa | B | C | mm/in |
| 50*32 2*1¼ | 60.3*42.4 2.375*1.669 | 300 2.07 | 78 3.071 | 115 4.527 | 68 2.677 | 74 2.913 | 46 1.8 |
| 65*40 2½*1½ | 73*48.3 2.87*1.900 | 300 2.07 | 96 3.78 | 138 5.433 | 77 3.031 | 84 3.307 | 51 2 |
| 80*32 3*1¼ | 88.9*42.4 3.500*1.669 | 300 2.07 | 112 4.409 | 150 5.906 | 85 3.346 | 84 3.307 | 51 2 |
| 80*40 3*1½ | 88.9*48.3 3.500*1.900 | 300 2.07 | 112 4.409 | 150 5.906 | 85 3.346 | 84 3.307 | 51 2 |
| 100*65 4*2½ | 114.3*73 4.500*2.874 | 300 2.07 | 140 5.512 | 176 6.929 | 100 3.937 | 114 4.488 | 70 2.75 |
| 100*80 4*3 | 114.3*88.9 4.500*3.500 | 300 2.07 | 140 5.512 | 176 6.929 | 100 3.937 | 134 5.276 | 89 3.5 |
| 125*50 5.5OD*2 | 139.7*60.3 5.500*2.375 | 300 2.07 | 166 6.535 | 215 8.465 | 113 4.448 | 107 4.213 | 64 2.5 |
| 125*65 5.5OD*3OD | 139.7*76.1 5.500*3 | 300 2.07 | 166 6.535 | 215 8.465 | 113 4.448 | 117 4.606 | 70 2.75 |
| 150*100 6.5OD*4 | 165.1*114.3 6.500*4.500 | 300 2.07 | 192 7.559 | 241 9.488 | 130 5.118 | 160 6.299 | 114 4.5 |
| 150*32 6*1¼ | 168.3*42.4 6.625*1.669 | 300 2.07 | 194 7.638 | 243 9.567 | 126 4.961 | 92 3.622 | 51 2 |
| 150*40 6*1½ | 168.3*48.3 6.625*1.900 | 300 2.07 | 194 7.638 | 243 9.567 | 126 4.961 | 92 3.622 | 51 2 |
| 200*80 8*3 | 219.1*88.9 8.625*3.500 | 300 2.07 | 250 9.843 | 305 12.007 | 155 6.102 | 134 5.276 | 89 3.5 |
| 200*100 8*4 | 219.1*114.3 8.625*4.500 | 300 2.07 | 250 9.843 | 310 12.205 | 160 6.299 | 114 4.5 | |
4.Surface Treatment : epoxy, painted and galvanized
5. Applications: Fire protection, Water supply system, General pipe system, Air-conditioning, Sewage system, Cement pipe system, Mine pipe systems
6.ADVANTAGE: Easy to assemble and disassembel, easy to operate
