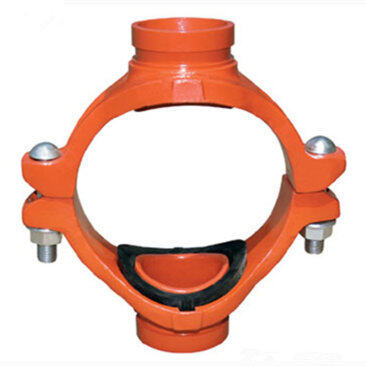

What is Grooved Mechanical Cross ?
Applications: Fire protection, Water supply system, General pipe system, Air-conditioning, Sewage system, Cement pipe system, Mine pipe systems
Product description :
1. Grooved Fittings series : Coupling, Elbow, Tee, Cross, Cap, —
2. Material : Ductile iron
3.size
| Mechanical Cross(grooved) | |||||||
| Nominal Size mm/in | Pipe O.D mm/in | Working Pressure PSI/MPa | Dimensions mm/in | Hole cuting dimensions | |||
| Nominal Size mm/in | Ø | Pipe O.D mm/in | A | Working Pressure PSI/MPa | B | C | mm/in |
| 50*322*1¼ | 60.3*42.42.375*1.669 | 3002.07 | 783.071 | 1154.527 | 682.677 | 742.913 | 461.8 |
| 65*402½*1½ | 73*48.32.87*1.900 | 3002.07 | 963.78 | 1385.433 | 773.031 | 843.307 | 512 |
| 80*323*1¼ | 88.9*42.43.500*1.669 | 3002.07 | 1124.409 | 1505.906 | 853.346 | 843.307 | 512 |
| 80*403*1½ | 88.9*48.33.500*1.900 | 3002.07 | 1124.409 | 1505.906 | 853.346 | 843.307 | 512 |
| 100*654*2½ | 114.3*734.500*2.874 | 3002.07 | 1405.512 | 1766.929 | 1003.937 | 1144.488 | 702.75 |
| 100*804*3 | 114.3*88.94.500*3.500 | 3002.07 | 1405.512 | 1766.929 | 1003.937 | 1345.276 | 893.5 |
| 125*505.5OD*2 | 139.7*60.35.500*2.375 | 3002.07 | 1666.535 | 2158.465 | 1134.448 | 1074.213 | 642.5 |
| 125*655.5OD*3OD | 139.7*76.15.500*3 | 3002.07 | 1666.535 | 2158.465 | 1134.448 | 1174.606 | 702.75 |
| 150*1006.5OD*4 | 165.1*114.36.500*4.500 | 3002.07 | 1927.559 | 2419.488 | 1305.118 | 1606.299 | 1144.5 |
| 150*326*1¼ | 168.3*42.46.625*1.669 | 3002.07 | 1947.638 | 2439.567 | 1264.961 | 923.622 | 512 |
| 150*406*1½ | 168.3*48.36.625*1.900 | 3002.07 | 1947.638 | 2439.567 | 1264.961 | 923.622 | 512 |
| 200*808*3 | 219.1*88.98.625*3.500 | 3002.07 | 2509.843 | 30512.007 | 1556.102 | 1345.276 | 893.5 |
| 200*1008*4 | 219.1*114.38.625*4.500 | 3002.07 | 2509.843 | 31012.205 | 1606.299 | 1144.5 | |
4.Surface Treatment : epoxy, painted and galvanized
5. Applications: Fire protection, Water supply system, General pipe system, Air-conditioning, Sewage system, Cement pipe system, Mine pipe systems
6.ADVANTAGE: Easy to assemble and disassembel, easy to operate
